Comprehensive Knowledge Of Furnace Rolls

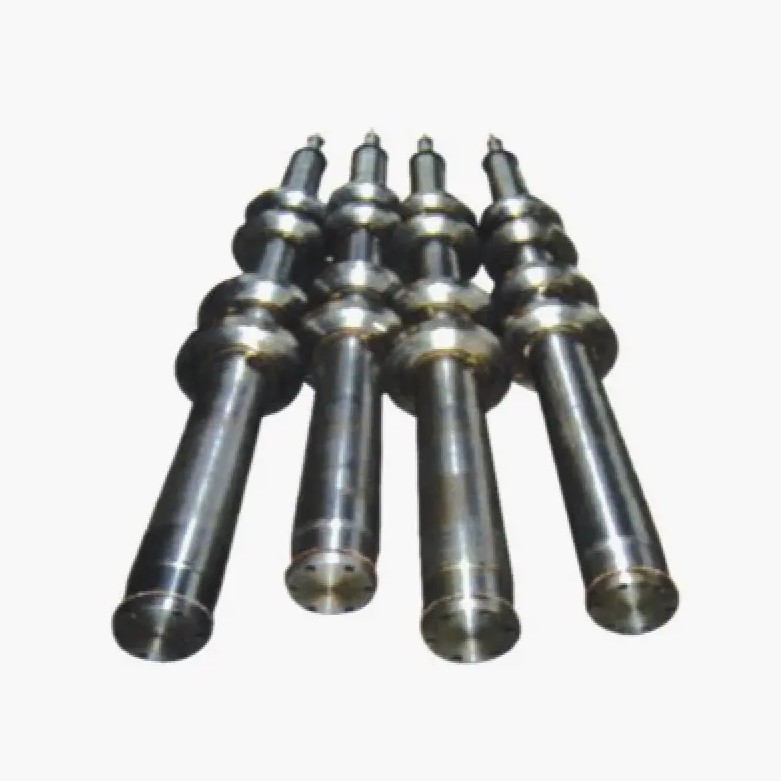

1. Overview of Furnace Rolls

Furnace Rolls are specialized components used in high-temperature industrial processes such as annealing, continuous galvanizing, and steel rolling. These rolls are engineered to withstand extreme heat (often up to 1200°C or higher) while maintaining dimensional stability, wear resistance, and corrosion resistance. They are typically installed inside furnaces to convey steel sheets, handle hot metal, or act as a heating medium.

2. Types of Furnace Rolls

3. Key Specifications and Parameters

When selecting a furnace roll, buyers typically look for the following specifications:

4. Buying Guide: What to Consider

1.Temperature Compatibility

Ensure the roll material can withstand the furnace's peak temperature. For temperatures above 1200°C, ceramic rolls are often the preferred choice.

2.Cooling Requirements

Decide between water-cooled and air-cooled designs. Water-cooled rolls require additional infrastructure (pumps, seals) but can handle higher heat fluxes. Air-cooled (or uncooled) rolls are simpler but may have lower temperature limits.

3.Material Selection

Alloy Steel: Best for moderate temperatures with high mechanical loads.
Ceramic: Best for high-purity processes or extreme temperatures where thermal expansion must be minimized.

4.Customization Needs

Many manufacturers offer custom dimensions, material grades, and shaft designs to fit specific furnace layouts.

5.Installation and Maintenance

Consider the ease of installation (e.g., flange vs. welded shaft) and the availability of spare parts. Regular inspection for wear, corrosion, and thermal fatigue is essential for long-term performance.

5. Common Applications

Annealing Furnaces: Used to uniformly heat steel sheets for stress relief.

Continuous Galvanizing Lines: Convey steel through the zinc coating process.

Glass Processing: Ceramic rolls are used in tempering and annealing ovens for glass products.

Automotive Furnaces: For heat treatment of automotive components.

6. Installation Guidelines

Proper installation is critical to ensure the longevity and performance of furnace rolls. Below is a step-by-step checklist for installation:

7. Maintenance Checklist

Regular maintenance helps prevent unexpected downtime. Below is a concise maintenance schedule:

8. Ordering Process & Supplier Selection

When placing an order, follow this structured approach:

Key Supplier Criteria:

Material Traceability: Ability to provide mill certificates for alloy composition.
Customization Capability: Willingness to adjust dimensions and material grades.
After-sales Service: Availability of technical support for installation and troubleshooting.

9. Advanced Applications & Industry Use Cases

Furnace rolls are not limited to traditional steel annealing. Their high-temperature resilience and customizable designs enable them to serve niche and high-tech industries.

10. Troubleshooting Guide

Identifying and addressing common issues early can prevent costly downtime.

11. Environmental & Safety Considerations

Modern manufacturing emphasizes sustainability and safety.

--Material Recyclability: High-alloy furnace rolls are often recyclable at the end of life. However, due to potential contamination, they may require specialized recycling processes.

--Energy Efficiency: Selecting rolls with optimal thermal conductivity can improve furnace heat distribution, reducing overall energy consumption.

--Safety Standards: Ensure compliance with relevant safety standards (e.g., OSHA for mechanical safety, IEC for temperature monitoring) when integrating rolls into new furnace designs.

12. Real-World Application Cases

Below are brief examples of how furnace rolls are utilized across different industries:

13. Advanced Coating Technologies for Enhanced Performance

Modern furnace rolls often incorporate specialized coatings to improve wear resistance, thermal insulation, and chemical stability. These technologies are at the forefront of materials science.

13.1.Smart Coatings and Surface Treatments

--Nanostructured Oxide Layers: Advanced ceramic or oxide coatings (e.g., Al₂O₃, Si₃N₄) are applied to create a hard, wear-resistant surface that can operate at temperatures exceeding 1200°C. These coatings also act as a barrier against oxidation and corrosion, especially in aggressive furnace atmospheres.

--Low-Friction Coatings: In roll-to-roll systems where the roll contacts delicate films (e.g., graphene or solar cells), low-friction coatings reduce the risk of micro-scratches and improve material handling efficiency.

--Thermal Barrier Coatings (TBCs): Applied to the outer surface of the roll, TBCs reduce heat loss, improve energy efficiency, and protect the underlying alloy from thermal shock.

13.2.Material-Specific Coatings

14. Industry-Specific Integration and Use Cases

Furnace rolls are integral components across various high-tech and heavy industries. Their design and implementation vary significantly based on application.

14.1.Roll-to-Roll (R2R) Manufacturing

In R2R processes, furnace rolls must handle delicate substrates such as flexible electronics, solar cells, or graphene sheets. The key requirements include:

--High Dimensional Precision: Ensuring uniform tension across the substrate to prevent wrinkles or tears.

--Clean Surface: Maintaining a contaminant-free roll surface to avoid defects in thin-film deposition or coating processes.

--Advanced Coatings: Utilizing low-friction, wear-resistant coatings to protect both the roll and the substrate.

14.2.Continuous Galvanizing and Annealing Lines

For steel processing, furnace rolls must withstand continuous operation under high loads and temperatures:

--Robust Construction: Typically made from high-alloy steels (e.g., ZG45Ni48Cr28W5Si2) to resist deformation and oxidation.

--Heavy-Duty Dimensions: Rolls can range from Φ60mm to Φ1600mm, depending on the width of the steel strip.

--Coating Compatibility: Rolls are often integrated into coating furnace rollers (CGL/CAL) for high-end automotive and appliance plates, requiring precise temperature control and surface finish.

15. Quality Control & Inspection Methods

Ensuring the integrity of furnace rolls before installation is critical to prevent costly downtime. The following inspection protocols are standard in the industry:

15.1.Dimensional Verification

--Straightness & Runout: Use laser alignment tools to measure runout. Acceptable tolerance is typically ≤0.5 mm per meter for high-precision lines.

--Concentricity: Verify that the roll's outer diameter is concentric with the shaft axis. Misalignment can cause uneven heating and premature wear.

15.2.Non-Destructive Testing (NDT)

--Eddy Current Testing: Detect surface cracks and sub-surface flaws, especially important for high-alloy rolls like ZG40Cr25Ni20Si2.

--Magnetic Particle Inspection (MPI): Used for detecting surface and near-surface discontinuities in ferromagnetic materials.

--Liquid Penetrant Inspection (LPI): Effective for identifying surface-breaking defects, particularly in the roll's bell ends.

15.3.Material Certification

--Chemical Analysis: Spectrometer analysis ensures the alloy composition meets specifications (e.g., Cr ≥ 25% for ZG40Cr25Ni20Si2).

--Mechanical Testing: Tensile strength, yield strength, and elongation tests verify that the roll can withstand operational loads (e.g., tensile strength ≥ 588 MPa for ZG40Cr25Ni20Si2).

16. Safety & Compliance

Ensuring safe operation and regulatory compliance is paramount.

--Mechanical Safety: Implement lockout/tagout (LOTO) procedures during roll changes. Ensure all rotating parts are guarded.

--Thermal Safety: Use thermal shielding and proper PPE when working near high-temperature rolls.

--Regulatory Standards: Comply with relevant standards (e.g., ISO 9001 for quality, ISO 14001 for environmental management) and local safety regulations.

17. Frequently Asked Questions (FAQ)

Q: Can furnace rolls be repaired or refurbished?
A: Yes, many suppliers offer refurbishment services where worn rolls are re-machined or re-coated to restore dimensional accuracy and surface finish.

Q: What is the difference between a water-cooled roll and a high-alloy roll?
A: Water-cooled rolls use internal water channels to dissipate heat, allowing the use of lower-cost alloys but requiring a complex cooling system. High-alloy rolls rely on the material's intrinsic heat resistance, simplifying furnace design but often at a higher material cost.

Q: Are there standard sizes for furnace rolls?
A: While there are standard dimensions (e.g., Φ60mm, Φ200mm, Φ500mm), most manufacturers can produce custom sizes to fit specific furnace configurations.

Q: How do I ensure the roll fits my existing furnace?
A: Provide the supplier with detailed specifications, including shaft dimensions, end cap design, and the exact roll length and diameter required for your furnace model.

18. Emerging Technologies & Future Trends

The furnace roll industry is evolving with innovations in additive manufacturing (AM), smart coatings, and real-time monitoring.

18.1.Additive Manufacturing of Cooling Structures

Complex Internal Cooling: Traditional casting limits cooling channel geometry to simple shapes. Additive manufacturing (e.g., Selective Laser Sintering of ceramics) enables multi-wall, lattice-like cooling channels that significantly enhance heat dissipation.
Materials: Emerging use of preceramic polymers (e.g., polysiloxanes) that convert to SiOC or SiCN ceramics after sintering, offering high-temperature stability and tailored thermal conductivity.
Benefits: Improved cooling efficiency, weight reduction, and the ability to integrate sensor cavities for embedded temperature monitoring.

18.2.Smart Coatings & Surface Engineering

Self-Healing Ceramics: Development of coatings that can autonomously repair micro-cracks at high temperatures, extending roll life in oxidative environments.
Low-Friction Nanocoatings: Application of nanostructured TiAlN or DLC (Diamond-Like Carbon) coatings to reduce wear in roll-to-roll processes involving delicate substrates like flexible electronics.
Thermal Barrier Coatings (TBCs): Advanced YSZ (Yttria-Stabilized Zirconia) based TBCs applied to the outer surface to reduce heat loss and protect the underlying alloy from thermal shock.
