Detailed Guide to Radiant Tubes: An Introduction

1. Overview

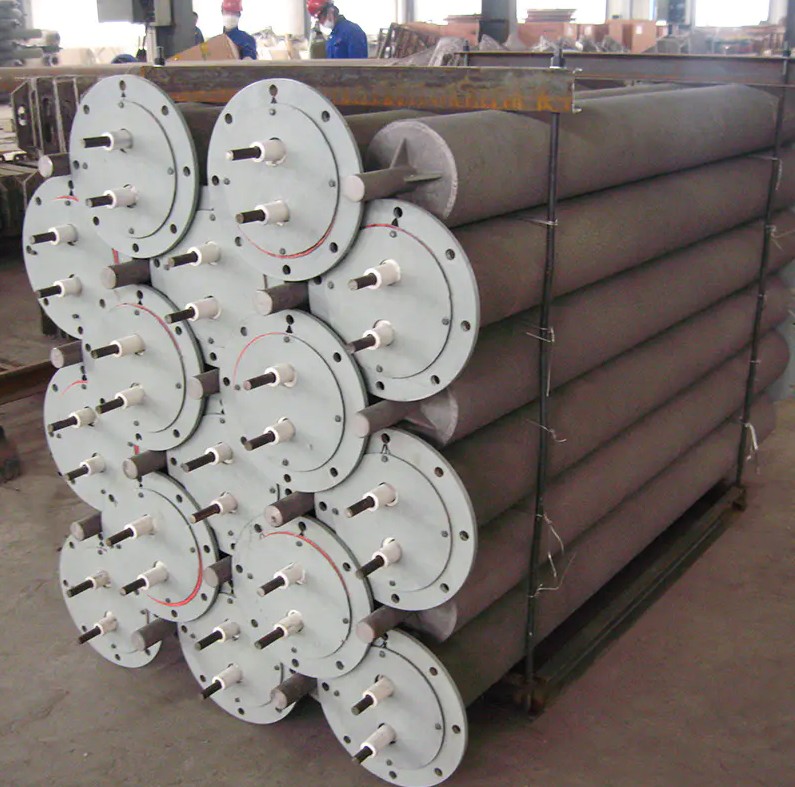

Radiant Tubes are high-temperature, indirect heating elements commonly used in industrial furnaces and heat treatment processes. They consist of a heating source (such as a gas burner or electric heating element) enclosed within a protective, heat-resistant tube, which radiates heat to the furnace interior while shielding the heating source from corrosive atmospheres.

Key Functions
Heat Transfer: Primarily through radiation (infrared), with a minor convective component, allowing for uniform heating of surfaces.
Protection: The tube protects the heating source from corrosive or oxidizing environments, extending the lifespan of the heating element.

2. Types of Radiant Tubes

Radiant tubes vary primarily in shape and design, each optimized for specific applications and space constraints.

3. Material Selection

The tube material is critical for performance, especially under high temperatures and corrosive atmospheres. Materials are chosen based on temperature resistance, corrosion resistance, and mechanical strength.

4. Technical Specifications

When evaluating radiant tubes, buyers should consider the following key specifications:

5. Installation & Integration

Proper installation is crucial for safety, efficiency, and longevity.

Core Components

Burner (for gas-fired tubes): Generates the combustion gases that heat the tube.

Reflectors: Direct the radiant energy towards the workpiece, improving efficiency.

Fans/Blowers: Often used to circulate combustion gases through the tube and exhaust them safely.

Insulation (e.g., fire bricks): Surrounds the tube to contain heat and protect furnace walls.

Installation Tips

Allow for Thermal Expansion: Use flexible connections or expansion joints to accommodate temperature-induced growth.

Ensure Proper Clearance: Maintain recommended distances from other furnace components to prevent overheating.

Seal Connections: All joints must be gas-tight for gas-fired tubes to avoid leaks and ensure safety.

Use Appropriate Mounting: Secure the tube using brackets or supports that can handle the weight and thermal stress.

6. Maintenance & Safety

Routine Checks

Visual Inspection: Look for cracks, corrosion, or deformation on the tube surface.

Pressure Testing: For gas-fired tubes, regularly test for leaks using pressure gauges.

Temperature Monitoring: Use thermocouples to ensure the tube does not exceed its rated temperature.

Common Issues & Solutions

7. Buying Guide

When purchasing a radiant tube, consider the following criteria to ensure you select the right product for your application:

Application Requirements: Define the process (e.g., annealing, carburizing, drying) and required temperature range.

Furnace Size & Layout: Choose a tube type (Straight, U, W, etc.) that fits within the physical constraints of your furnace.

Atmosphere Compatibility: Ensure the tube material can withstand the furnace atmosphere (oxidizing, reducing, neutral).

Energy Source: Decide between gas-fired (higher temperatures, lower operating costs) or electric (precise control, no combustion gases) based on availability and cost.

Regulatory Compliance: Verify that the tube and associated burners meet local safety and emission standards (e.g., NOx limits for gas burners).

8. Advanced Design Concepts and Innovations

Modern radiant tube designs incorporate sophisticated features to enhance performance, reduce energy consumption, and improve durability. The following innovations are prevalent in the industry:

A. Regenerative Burners with Gaseous Shielding

Concept: Regenerative burners preheat the combustion air using the furnace's own exhaust gases, resulting in a higher flame temperature. However, this can cause excessive heating of the tube walls.

Innovation: Introduction of a gaseous shield—a flow of inert or cooled gases (often a portion of the combustion products) that flows adjacent to the tube wall. This shield protects the tube from the hottest part of the flame, distributing heat more evenly and preventing localized overheating.

Benefit: Allows the use of thinner walls while maintaining tube life, and reduces the formation of nitrogen oxides (NOx) by moderating flame temperatures.

B. Spiral-Welded Construction

Concept: Traditional welded tubes may have asymmetrical properties due to the direction of the weld.

Innovation: Spiral welding creates a symmetrical tube where properties are uniform around the circumference. This design also minimizes distortion during heating.

Benefit: Improves mechanical stability and heat transfer uniformity, especially important for high-precision heat treatment processes.

C. Integrated Reflectors and Multi-Tube Configurations

Concept: To maximize radiant efficiency, tubes can be arranged in configurations that reflect and concentrate heat.

Implementation:
W-Type Tubes: Feature multiple bends that increase surface area within a compact footprint, ideal for large heating zones.

Reflectors: Strategically placed reflective surfaces (often made of high-temperature alloys) direct radiation towards the workpiece, reducing heat loss to the furnace walls.

Multi-Tube Bundles: In high-capacity furnaces, multiple tubes are bundled together with shared manifolds, balancing flow and temperature across a wide area.

D. Thin-Wall, High-Temperature Alloys

Materials: Advanced alloys (e.g., Kanthal, Fe-Cr-Al) with thin walls (as low as 3/8") provide superior oxidation resistance while reducing thermal mass.

Benefit: Faster furnace heat-up times and reduced energy consumption, as less material needs to be heated before reaching the target temperature.

9. Comparative Analysis: Radiant Tubes vs. Alternative Heating Technologies

Buyers often evaluate radiant tubes against other furnace heating methods. Below is a comparative overview:

10. Case Studies: Real-World Applications

Case Study 1: Continuous Strip Heat Treatment

Challenge: Maintaining a uniform temperature across a moving steel strip while preserving a clean atmosphere.

Solution: Implementation of U-Type Radiant Tubes with regenerative burners and a gaseous shield. The tube's geometry allowed for a compact design that fit within the furnace's limited height, while the shield protected the tube from flame spikes, extending its life.

Outcome: Achieved a 15% reduction in fuel consumption and a 20% increase in tube lifespan due to the protective shield and high-quality alloy material.

Case Study 2: High-Temperature Annealing

Challenge: Reaching temperatures above 1200°C for alloy annealing without compromising tube integrity.

Solution: Utilization of Nickel-Based Alloy Radiant Tubes with a thin-wall design and spiral welding. The high-temperature alloy resisted oxidation, and the thin wall reduced thermal inertia, allowing rapid temperature ramp-up.

Outcome: Reduced heat-up time by 30% and eliminated tube cracking incidents over a 3-year operational period.

11. Troubleshooting Guide

12. Industry Standards and Compliance

When specifying or purchasing radiant tubes, ensure compliance with the following standards to guarantee quality, safety, and interoperability:

13. Procurement Checklist for Radiant Tubes

Before finalizing a purchase, use this checklist to ensure all critical factors are addressed:

1.Define Process Requirements

Target temperature range (°C/°F)

Required heat flux (kW/m²)

Furnace atmosphere (oxidizing, neutral, reducing)

2.Select Tube Geometry

Choose between Straight, U-Type, W-Type, or P-Type based on furnace space and heating zone uniformity.

3.Specify Material Grade

Determine if standard stainless steel suffices or if a high-nickel alloy is needed for corrosive environments.

4.Verify Dimensional Compatibility

Confirm outer diameter, wall thickness, and minimum clearance (typically ≥ 75 mm from walls) to accommodate thermal expansion.

5.Assess Burner Compatibility

Ensure the tube's inlet design matches the intended burner (regenerative vs. direct fire) and that gas pressure specifications are met.

6.Request Technical Documentation

Obtain material certificates, heat treatment logs, and compliance certificates (ASTM, DIN, ISO).

7.Plan for Installation and Maintenance

Verify that the supplier provides installation guidelines and that spare parts are readily available for the selected tube type.

14. Supplier Evaluation Checklist

When sourcing radiant tubes, a systematic evaluation ensures reliability, compliance, and value for money:

15. Installation Best Practices and Safety Protocols

Proper installation is critical for performance, longevity, and safety. Follow these guidelines:

1.Clearance and Support

Wall/Floor Distance: Maintain a minimum clearance of 1.2 × tube diameter (d) from furnace walls and floors for temperatures above 600 °C, and ≥ 100 mm for lower temperatures with high air flow.

Tube Spacing: Center‑to‑center spacing should be ≥ 2.5 × d to avoid radiative interference and ensure uniform heating.

Support Hangers: Position tube hangers no more than 4 in (10 cm) from the burner unit, and use S‑hooks for secure suspension.

2.Flange and Seal Installation

Torque Specifications: Apply uniform torque to flange bolts (typically 15‑20 Nm) to avoid uneven compression that could lead to leaks.

Seal Integrity: Use high‑temperature silicone or graphite gaskets. Verify that the flame observation window faces down to prevent direct flame impact on the tube's entry point.

3.Pre‑Commissioning Checks

Shock Sensor Inspection: Ensure shock sensors on packaging are intact upon receipt, indicating the tube has not been damaged during transport.

Thermal Imaging: Conduct an infrared scan after initial heat‑up to identify hot spots or uneven radiation patterns.

4.Safety Precautions

Pressure Relief: Install pressure relief valves on the gas line to protect against over‑pressurization.

Ventilation: Ensure adequate ventilation for combustion gases, especially when using low‑NOx burners that may produce higher levels of CO if not properly adjusted.

16. Maintenance Planning and Lifecycle Management

A proactive maintenance strategy extends tube life and minimizes unexpected downtime:

End‑of‑Life Options:

Refurbishment: Some high‑nickel tubes can be re‑coated with protective layers (e.g., Al₂O₃) to extend service life.

Re‑Casting: For alloy tubes, consider sending the material to a foundry for re‑melting and casting into new tubes, which can be more sustainable than purchasing new stock.

17. Advanced Troubleshooting and Diagnostics

Even with careful design, operational issues can arise. This section provides a systematic approach to diagnosing common problems, using both empirical observations and quantitative analysis.

A. Diagnostic Flowchart for Common Issues

B. Quantitative Root‑Cause Analysis

When a failure occurs, apply a simple quantitative model to estimate the contribution of each factor:

α (Thermal Factor): Increases with rapid temperature changes (ΔT/Δt). Use data from thermocouples to calculate ramp rates.
β (Chemical Factor): Correlates with fuel impurity levels (e.g., ppm of H₂S). Obtain fuel analysis reports.
γ (Mechanical Factor): Relates to tube sag (mm deviation) and gas velocity (m/s). Measure using laser alignment tools and flow meters.

18. Frequently Asked Questions (FAQ)

Q1: How does a radiant tube differ from a traditional furnace burner?
A radiant tube encloses the heating source within a protective tube, allowing for indirect heating. This protects the heating element from corrosive atmospheres and enables more uniform heat distribution compared to direct flame burners.

Q2: Can radiant tubes be used for both heating and cooling?
No, radiant tubes are designed exclusively for heating applications. Cooling processes typically use different technologies such as water jackets or air cooling systems.

Q3: What is the typical lifespan of a radiant tube?
The lifespan varies based on material and operating conditions but generally ranges from 5 to 15 years. Proper maintenance and avoiding exposure to temperatures beyond the tube's rating can extend its service life.

Q4: Are there any special safety concerns with radiant tubes?
Yes. For gas-fired tubes, ensure proper ventilation and exhaust of combustion gases. For all tubes, avoid direct contact with the hot surface and use protective equipment during installation and maintenance.

19. Quick Reference Checklist
